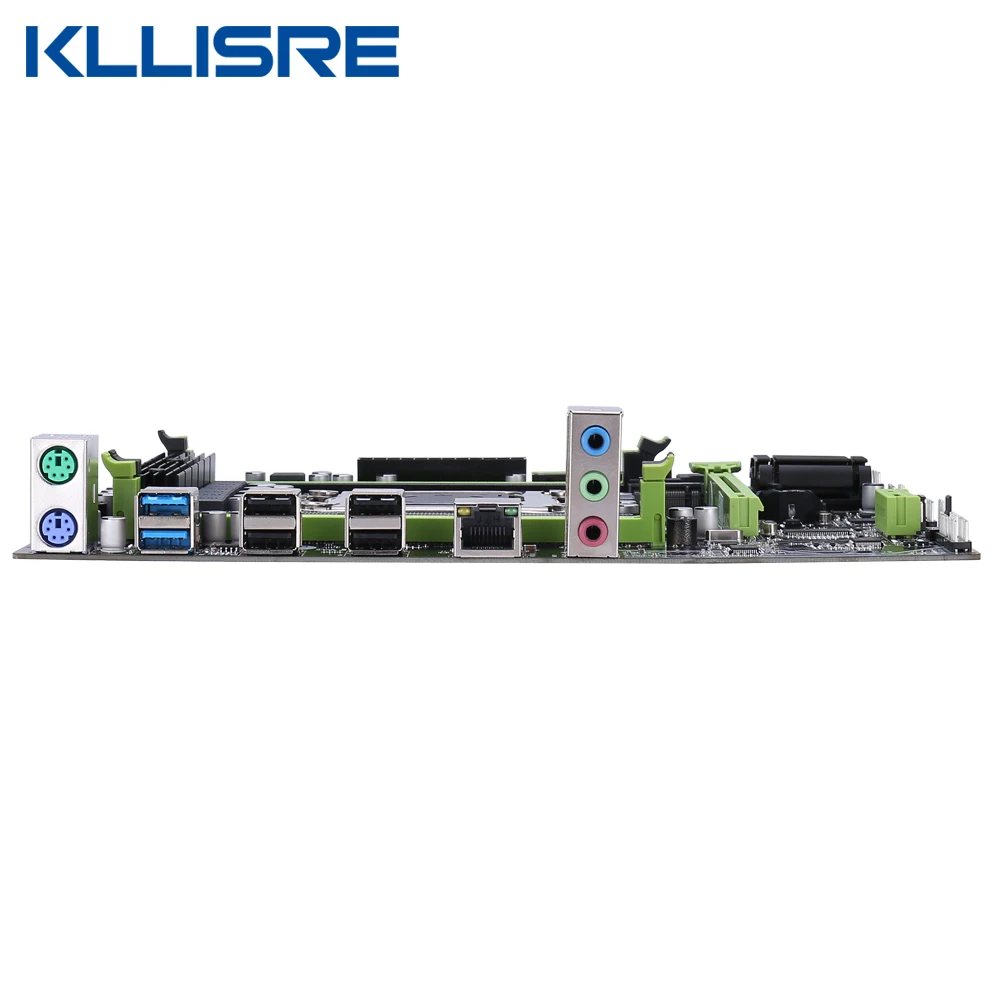

Kllisre X79 chipset motherboard LGA 2011 USB3.0 SATA3 support REG ECC memory and Xeon E5 processor 4XDDR3
1. Dual-channel memory, support common memory and ECC server memory, but can not be mixed at the same time.
2. Modular large heat dissipation power supply design, low temperature and high efficiency, multi-phase sharing, more stable, 7-phase power supply motherboard.
CPU Platform: for Intel
CPU slot LGA: 2011
CPU support quantity: 1pc
Memory type: DDR3 (1600MHz/1333MHz)
Memory slot: 4xDDR3 DIMM
Support CPU type: Xeon 2011 Server
(Xeon E5 2620/2630/2640/2650/2660/2665/2670/2680/2690/V2 )
Support for image card standards: PCI Express 16X
Hard disk interface: S-ATA III/II (SATA 2.0 x 3 SATA 3.0 x 1)
Number of USB interfaces: USB 2.0 x 4+USB 3.0 x 2
Memory channel: dual channel
Maximum memory capacity: 64GB
Whether to support disk array: not supported
Motherboard dimension: 238*185mm
Motherboard weight(including package): 0.8kg or so
Note: 1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 450w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
6:For tax problem in Brazil, pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding.
Memory Installation Tips: you need to insert the slot in the Green slot first, the Green one is the main slot, and the black one is the sub slot.
